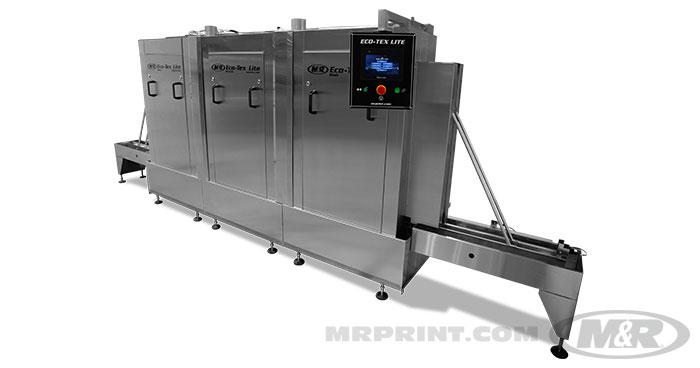

M&R Eco-Tex Lite Auto Screening & Reclaim System
M&R-ECO-TEX-LITE
Cleans and reclaims up to 180 screens a shift with one operator, frames up to 26" x 36". Quoted with 208/230V 3-phase power, air, exhaust and install for your shop.
Or call: 763-391-7390 · 817-861-3464
Ships same day from MN & TX · Free shipping on supply orders $300+
M&R's Eco-Tex Lite: automatic screen cleaning and reclaiming for small to mid-size shops.
Overview
The M&R Eco-Tex Lite is the newest and most compact model in the Eco-Tex family. It automates the whole screen cleaning and reclaiming process, so a small or mid-size shop can turn screens around faster while spending less on labor and chemicals. M&R rates it at up to 180 screens in an 8-hour shift with one operator.
The operator enters a cleaning recipe on the touchscreen, based on the screen's mesh and emulsion, then loads dirty screens onto the infeed conveyor. The first chamber applies ink removal chemistry and lets it drip off for recirculation. The second applies emulsion remover and gives it soak time. The third power washes the emulsion away, and clean screens come out at the outfeed.
All three chambers are enclosed, which keeps your people away from screen processing chemicals. Each chamber keeps its own chemistry separate so it stays effective longer, and recirculation cuts both chemical use and environmental impact. It handles frames up to 26" x 36".
-
Three Enclosed Chambers
Ink removal, emulsion removal and power wash, each enclosed to eliminate direct exposure to screen chemicals. -
Up to 180 Screens per Shift
M&R's estimate for an 8-hour shift with one operator, based on a single-screen cycle. -
Automatic Loading and Unloading
Screens move through on a conveyor from infeed to outfeed, which keeps labor to a minimum. -
Recipe-Based Touchscreen Control
Digital touchscreen with onboard self-diagnostics. Save recipes by mesh and emulsion. -
Emulsion Remover Dose Pump
Programmable additions of concentrate keep the emulsion remover working at full strength. -
Chemical Recirculation
Separate chemistry per chamber and improved spray nozzle patterns lower chemical cost and waste. -
All Stainless-Steel Construction
Built for daily contact with screen cleaning and reclaiming chemicals. -
Two Standard Frame Sizes
Cleans 23" x 31" and 26" x 36" textile screen frames. -
Warranty & Support
One-year limited warranty, CE certified and UL listed, with M&R's 24-hour / 365-day support hotline.
