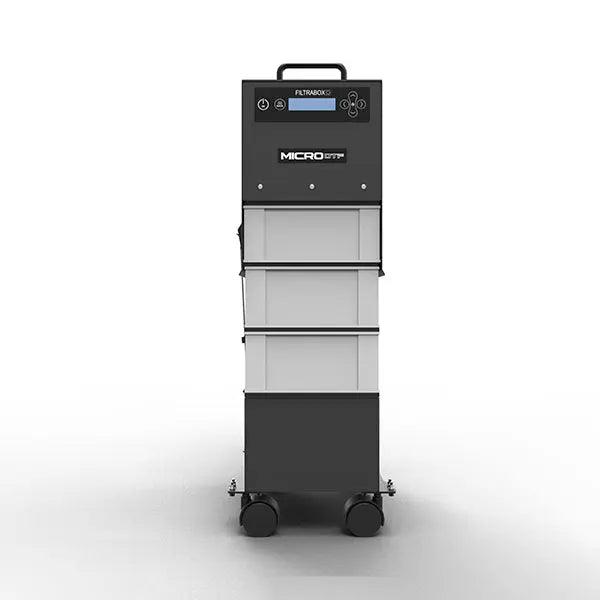

PAT Micro-X DTF Fume Extractor w/Hose Kit
Backordered
$2,305.00
SKU PAT-MICRO-X-DTF
Micro DTF
Overview
Portable Fume Extractor for DTF Transfer Printing. Single-blower and 3 stage Hydrophobic HEPA filtration for excellent fog removal performance in a micro format. Great for small (11” to 14” width) roll-to-roll DTF Transfer Printing systems . Captures the thick oily fog generated during the curing of the printed transfers. Produce quality transfers for garments and other substrates in a clean air environment – your products and employees will benefit!
3 Stage Filtration: Rigid Separated Filters
Each individual filter has a specific function within Filtrabox’s 3 stages of filtration:
Technical/Electrical Specs.
Features
▼
- Polymer Pre-filter: The liquid-resistant polymer pre-filter protects the critical downstream HEPA filter from clogging ambient dust and liquid for overload. The filter media is encased in a strong aluminum cartridge to resist contamination bypass. The high surface area mini-pleat filter media ensures high capacity and efficiency for small applications.
- Hydrophobic HEPA filter: The Hydrophobic HEPA media not only resists moisture but is also extremely strong and sheds excess liquid to provide the perfect barrier to the DTF Fog. The filter media is encased in a rigid aluminum cartridge to resist contamination bypass. Learn More. The high surface area mini-pleat filter media ensures high capacity and efficiency for small applications.
- Gas Filter: The gas filter is filled with pure activated carbon to remove unpleasant odors at the molecular level. 10 lbs of the adsorption media ensure high capacity and efficiency for small applications.
Specifications
▼
Quiet operation
57 db
Height
28 in.
Width
10 in.
Depth
17 in.
Warranty
1 year
Voltage
120V or 240V
Frequency
60Hz or 50Hz
Rated Amps
8A or 4A
Data Sheets
▼
