Professional 18" x 18" infrared flash dryer designed for screen printing production, delivering consistent radiant heat across the printing area with 360° rotation, adjustable leveling, and durable BBC Black Flash construction.

Characteristics

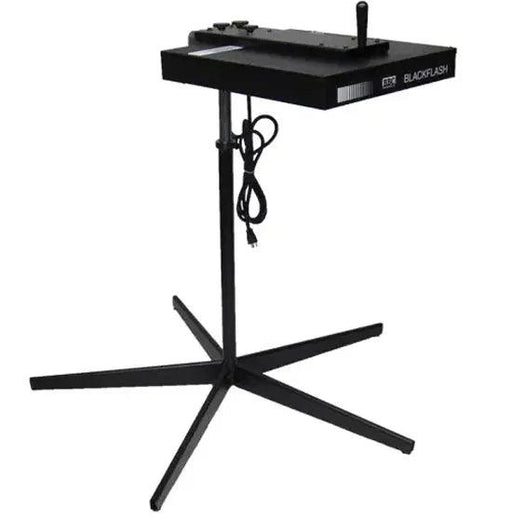

The BBC Flash Dryer 18" x 18" is a professional infrared flash curing unit designed to provide consistent, reliable heat for screen printing production. Part of BBC Industries' Black Flash® series, this versatile dryer is engineered for flashing inks between colors and supporting everyday production in manual screen printing environments.

The 18" x 18" infrared heating element provides consistent radiant heat across the element surface, helping create even and repeatable flashing results. The generous heating area is well suited for common garment platen sizes and provides ample coverage for a wide range of screen printed graphics.

Designed for flexibility around the press, the Black Flash features a low-profile design and 360° rotation, allowing the dryer to swing into position over the platen and move out of the way when printing resumes. BBC's leveling mechanism allows the heating element to be adjusted so the dryer face remains level with the platen for more consistent heating across the printed area.

Built for long-term use in screen printing shops, the unit includes a floor stand and is designed to provide dependable performance for both production environments and smaller shops requiring a dedicated flash curing solution.

This model operates on 120V power and requires a 20-amp electrical circuit. Always verify that the electrical supply and receptacle meet the unit's requirements before installation and operation.

SHIPPING NOTE: This item does not qualify for free shipping. A flat shipping fee will apply.

Features ▼

Professional infrared screen printing flash dryer
18" x 18" heating element
Consistent radiant heat across the element surface
Designed for flashing screen printing inks between colors
Low-profile dryer head design
360° rotation for convenient positioning
Adjustable leveling mechanism
Helps maintain a level heating surface over the platen
Suitable for manual screen printing production
Floor stand provides convenient positioning around the press
Durable construction designed for production environments
3-year limited warranty on heating elements
Manufactured by BBC Industries
Designed for long-term screen printing shop use

Specifications ▼

Brand

BBC Industries

Series

Black Flash®

Product Type

Infrared Flash Dryer

Heating Area

18" x 18"

Voltage

120V

Amperage

Approximately 17 Amps

Required Circuit

20 Amp

Heat Type

Infrared / Radiant

Rotation

360°

Mounting

Floor Stand

Application

Screen Printing

Primary Use

Flash Curing Between Print Colors

Heating Element Warranty

3-Year Limited Warranty

Usage Tips ▼

Position the heating element so it is level and centered over the printed area for consistent flashing.
Maintain appropriate clearance between the heating element and garment to prevent scorching or overheating.
Adjust flash time and dryer height according to the ink system, ink deposit, garment material, and production conditions.
Flash only as long as necessary to gel the ink when printing additional colors; excessive flashing can affect intercoat adhesion.
Monitor garment and ink temperatures during production rather than relying solely on a fixed dwell time.
Allow the flash dryer to reach a stable operating temperature before establishing production settings.
Keep the heating element and surrounding area clean and free from lint, ink, and other production debris.
Verify that the dryer is connected to a properly rated 20-amp electrical circuit before operation.
Follow the ink manufacturer's recommended flash and cure temperatures for the specific ink system being printed.
